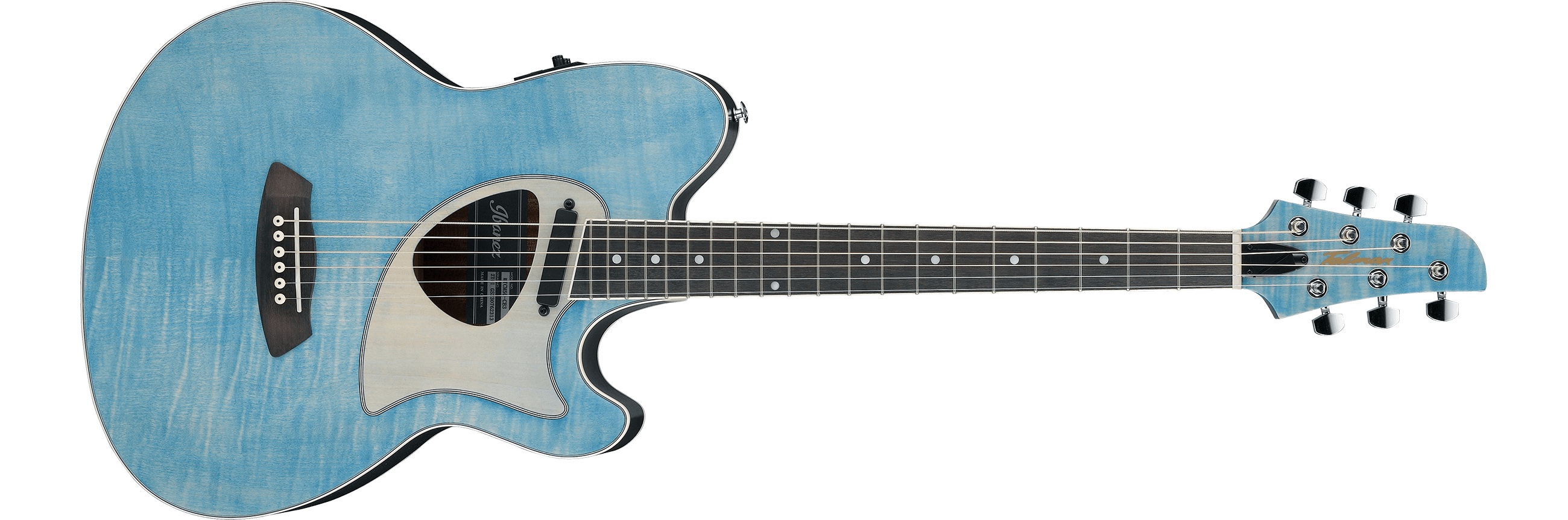

Ibanez TCM50FM Talman Acoustic-Electric Guitar, Flame Maple Top, Open Pore Denim Blue

GENERAL

• body shape: Talman Double Cutaway body
• top: Flamed Maple top
• back & sides: Sapele back & Sapele sides
• neck: TCMOkoume neck
• fretboard: Purpleheart fretboard
• bridge: Purpleheart bridge
• inlay: White dot inlay
• soundhole rosette: Basswood marquetry
• tuning machine: Chrome Die-cast tuners
• number of frets: 20
• bridge pins: Ibanez Advantage™
• string gauge: .012/.016/.024/.032/.042/.053
• string space: 11mm
• factory tuning: 1E,2B,3G,4D,5A,6E
• pickup: Ibanez AP2 Magnetic
• preamp: Ibanez AEQ-2TM preamp w/Onboard tuner
• output jack: 1/4" output
• battery: 9Vx1



NECK DIMENSIONS

• Scale: 650mm/25.6"
• a : Width: 42mm at NUT
• b : Width: 54mm at 14F
• c : Thickness: 21.5mm at 1F
• d : Thickness: 23.5mm at 7F
• Radius: 250mmR
